MARVIN ELEVATE COLLECTION
TM

INSTALLATION MADE SIMPLE AND EFFICIENT

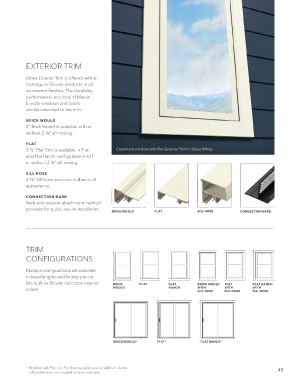

INSTALLATION OPTIONS EXTERIOR TRIM
AND ACCESSORIES Ultrex Exterior Trim is offered with all

rectangular Elevate products in all
1. NAILING FIN six exterior finishes. The durability,
Pre-attached folding nailing fin and drip cap for easier
installation. performance, and look of Marvin
1 2 Elevate windows and doors
2. THROUGH JAMB can be extended to the trim.
Available through-jamb and installation bracket options.
BRICK MOULD
3. FACTORY-APPLIED JAMB EXTENSIONS 2" Brick Mould is available with or
Factory-applied jamb extensions save time and labor. We without 2 1/8" sill nosing.
supply 4 9/16", 6 9/16", and 6 13/16" jamb depth in bare wood,
white, designer black, or clear interior finish. FLAT
3 1/2" Flat Trim is available in Flat Casement window with Flat Exterior Trim in Stone White
4. FACTORY-INSTALLED SCREENS and Flat Ranch configurations with
Factory-installed screens are a standard offering with 3 4 or without 2 1/8" sill nosing.
operating windows. At no extra cost, we can ship your screens
separately to reduce on-site damage prior to installation. SILL NOSE
2 1/8" Sill Nose provides authentic sill
5. FACTORY MULLED ASSEMBLIES appearance.
Available standard factory mulling, reinforced factory mulling,
or field mulling kits. The reinforced mull meets AAMA CONNECTION BARB
450 specifications and performs up to PG50 on standard Barb and receiver attachment method
products and up to PG55 on IZ3 rated products. provides for quick, secure installation. BRICK MOULD FLAT SILL NOSE CONNECTION BARB
5 6
6. CORNER KEYS
Integral corner keys keeps window and door units square
and corners sealed.

7. SPECIAL SIZES
1 1 TRIM
Special sizes are available on windows and doors in 1 2 3 4 5 6 7 8 9
1/64" increments for the perfect fit every time. 10 CONFIGURATIONS

8. PAINTABLE ULTREX EXTERIOR | |||||||| |||||||| |||||||| |||||||| |||| 1F 11 12 104 105 106 | |||||||| |||||||| |||||||| |||||||| |||| Multiple configurations are available
The Ultrex fiberglass exterior is paintable, and holds dark 7 8 in lineal lengths and factory pre-cut
®
colors better than vinyl or vinyl/wood composites. kits in all six Elevate collection exterior BRICK FLAT FLAT BRICK MOULD FLAT FLAT RANCH
colors. MOULD RANCH WITH WITH WITH
SILL NOSE
SILL NOSE
SILL NOSE

BRICK MOULD* FLAT* FLAT RANCH*

44 * Brick Mould, Flat, and Flat Ranch profiles are available on doors. 45
Sill profiles are not included for door trim sets.
