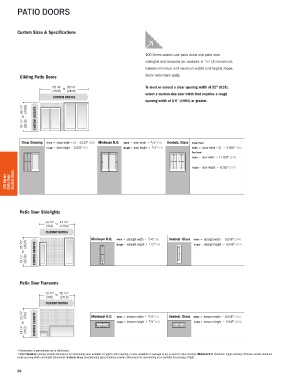

Page 90 - Andersen Windows & Patio Doors 2017-18 100 Series Product Guide for Professionals

PATIO DOORS

Custom Sizes & Specifications

100 Series custom-size patio doors and patio door
sidelights and transoms are available in ⁄ 8" (3) increments
1
between minimum and maximum widths and heights shown.
Gliding Patio Doors Some restrictions apply.

59 1 ⁄4" to 95 1 ⁄4" To meet or exceed a clear opening width of 32" (813),
(1505) (2419)
select a custom-size door width that requires a rough
CUSTOM WIDTHS
opening width of 6'6" (1981) or greater.
95 1 ⁄2" (2426)

to CUSTOM HEIGHTS
79 1 ⁄2" (2019)

Clear Opening Width = (door width ÷ 2) - 6.125" (156) Minimum R.O. Width = door width + 3 /4" (19) Unobstr. Glass Single-Panel
Height = door height - 3.625" (92) Height = door height + 1 /2" (13) Width = (door width ÷ 2) − 5.500" (140)
Two-Panel
Width = door width − 11.000" (279)

Height = door height − 8.250" (210)
100 Series Patio Door Custom Sizes

Patio Door Sidelights

14 1 ⁄4" to 47 1 ⁄4"
(362) (1200)
CUSTOM WIDTHS
Minimum R.O. Width = sidelight width + 3 /4" (19) Unobstr. Glass Width = sidelight width − 8.048" (204)
95 1 ⁄ 2" (2426) Height = sidelight height + 1 /2" (13) Height = sidelight height − 8.048" (204)
to CUSTOM HEIGHTS
79 1 ⁄ 2" (2019)

Patio Door Transoms

14 1 ⁄4" to 95 1 ⁄4"
(362) (2419)
CUSTOM WIDTHS
23 1 ⁄4" (591) Minimum R.O. Width = transom width + 3 /4" (19) Unobstr. Glass Width = transom width − 8.048" (204)

to CUSTOM HEIGHTS Height = transom height + 3 /4" (19) Height = transom height − 8.048" (204)
14 1 ⁄4" (362)

• Dimensions in parentheses are in millimeters.
• Clear Opening formulas provide dimensions for determining area available for egress. Vent opening, or area available for passage of air, is equal to clear opening. Minimum R.O. (minimum rough opening) formulas provide minimum
rough opening width and height dimensions. Unobstr. Glass (unobstructed glass) formulas provide dimensions for determining area available for passage of light.
