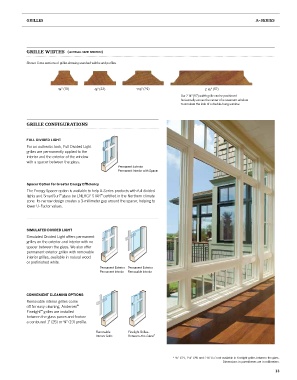

Page 15 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

grilles a-series

grille widths (actual size shown)

Shown: Cross sections of grilles showing standard widths and profiles.

¾" (19) 7 /8" (22) 1 1 /8" (29) 2 1 /4" (57)
Our 2 ¼"(57) width grille can be positioned
horizontally across the center of a casement window
to simulate the look of a double-hung window.

grille configurations

FULL DIVIDED LIGHT
For an authentic look, Full Divided Light
grilles are permanently applied to the
interior and the exterior of the window
with a spacer between the glass.
Permanent Exterior
Permanent Interior with Spacer

Spacer Option for Greater Energy Efficiency
The Energy Spacer option is available to help A-Series products with full divided
®
lights and SmartSun glass be ENERGY STAR certified in the Northern climate
™
zone. Its narrow design creates a 3-millimeter gap around the spacer, helping to
lower U-Factor values.

SIMULATED DIVIDED LIGHT
Simulated Divided Light offers permanent
grilles on the exterior and interior with no
spacer between the glass. We also offer
permanent exterior grilles with removable
interior grilles, available in natural wood
or prefinished white.
Permanent Exterior Permanent Exterior
Permanent Interior Removable Interior

CONVENIENT CLEANING OPTIONS
Removable interior grilles come
®
off for easy cleaning. Andersen
Finelight grilles are installed
™
between the glass panes and feature
a contoured 1" (25) or ¾" (19) profile.
Removable Finelight Grilles-
Interior Grille Between-the-Glass *

* 7 ⁄8" (22), 1 1 ⁄8" (29) and 2 1 ⁄4" (57) not available in Finelight grilles-between-the-glass.
Dimensions in parentheses are in millimeters.
