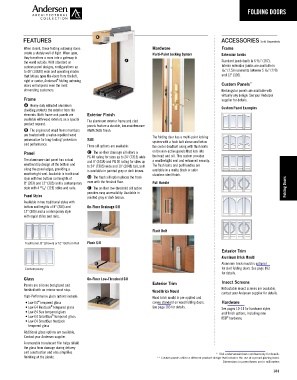

Page 183 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

FOLDING DOORS

FEATURES B ACCESSORIES Sold Separately

When closed, these folding outswing doors Hardware Frame
create a stately wall of light. When open, Multi-Point Locking System Extension Jambs
they transform a room into a gateway to
9
the world outside. With standard or A Standard jamb depth is 6 ⁄16" (167).
custom panel designs, configurations up Interior extension jambs are available in
1
to 48' (14630) wide and operating modes 1 ⁄16" (1.5) increments between 5 ⁄16" (129)
that let you open the doors from the left, and 12" (305).
®
right or center, Andersen folding outswing
doors will impress even the most Custom Panels **
demanding customers. C Rectangular panels are available with
virtually any design. See your Andersen
Frame supplier for details.
A Heavy-duty extruded aluminum Custom Panel Examples
cladding protects the exterior from the
elements. Both frame and panels are Exterior Finish
available with wood exteriors as a special The aluminum exterior frame and clad
product request. panels feature a durable, low-maintenance
B The engineered wood frame members AAMA 2605 finish.
are treated with a water-repellent wood The folding door has a multi-point locking
*
preservative for long-lasting protection Sill system with a hook bolt above and below
and performance. Three sill options are available: the center deadbolt along with flush bolts
Panel C The on-floor drainage sill offers a on the non-active panels that lock into
the head and sill. This system provides
The aluminum-clad panel has a dual PG 40 rating for sizes up to 24' (7315) wide a weathertight seal and enhanced security.
and 8' (2438) and PG 30 rating for sizes up
weatherstrip design at the bottom and to 24' (7315) wide and 10' (3048) tall, and The flush bolts and pull handles are
along the panel edges, providing a is available in painted gray or dark bronze. available in a matte black or satin
weathertight seal. Available in traditional stainless steel finish.
style with two bottom rail heights of D The flush sill option places the track
8" (203) and 12" (305) and a contemporary even with the finished floor. Pull Handle
style with 4 / 16" (119) stiles and rails. E The on-floor low-threshold sill option Folding Doors
11
provides easy accessibility. Available in
Panel Styles painted gray or dark bronze.
Available in two traditional styles with
bottom rail heights of 8" (203) and On-Floor Drainage Sill
12" (305) and a contemporary style
with equal stiles and rails.
C
Flush Bolt

Traditional, 8" (shown) or 12" Bottom Rail Flush Sill
Exterior Trim
Aluminum Brick Mould
D Aluminum brick mould is optional
Contemporary for clad folding doors. See page 183
for details.
Glass On-Floor Low-Threshold Sill Insect Screens
Panels are silicone bed glazed and Exterior Trim
finished with an interior wood stop. Wood Brick Mould Retractable insect screens are available,
High-Performance glass options include: E Wood brick mould is pre-applied and contact your Andersen supplier for details.
• Low-E4 tempered glass comes standard on wood folding doors. Hardware
®
• Low-E4 HeatLock tempered glass See page 183 for details. See pages 10-11 for hardware styles
®
• Low-E4 Sun tempered glass and finish options, including new
™
• Low-E4 SmartSun tempered glass FSB hardware.
®
• Low-E4 SmartSun HeatLock
tempered glass
Additional glass options are available.
Contact your Andersen supplier.
A removable translucent film helps shield
the glass from damage during delivery
and construction and also simplifies * Visit andersenwindows.com/warranty for details.
finishing at the jobsite. ** Custom panels utilize a different product design that includes the use of a proud glazing bead.
Dimensions in parentheses are in millimeters
