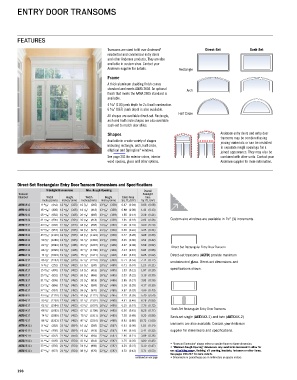

Page 200 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

ENTRY DOOR TRANSOMS

FEATURES

Transoms are sized to fit over Andersen Direct-Set Sash-Set
®
residential and commercial entry doors
and other Andersen products. They are also
available in custom sizes. Contact your
Andersen supplier for details. Rectangle
Frame
A thick aluminum cladding finish comes
standard and meets AAMA 2604. An optional Arch
finish that meets the AAMA 2605 standard is
available.
4 ⁄16" (116) jamb depth for 2 x 4 wall construction.
9
6 ⁄16" (167) jamb depth is also available.
9
Half Circle
All shapes are available direct-set. Rectangle,
arch and half circle shapes are also available
sash-set to match door stiles.
Shapes Andersen entry doors and entry door
Available in a wide variety of shapes transoms may be combined using
joining materials or can be installed
including rectangle, arch, half circle, in separate rough openings for a
elliptical and Springline windows. joined appearance. They may also be
™
See page 201 for exterior colors, interior combined with other units. Contact your
wood species, glass and other options. Andersen supplier for more information.

Direct-Set Rectangular Entry Door Transom Dimensions and Specifications
Sidelight Dimensions Min. Rough Opening Overall
Transom Sidelight
Number Width Height Width Height Glass Area Area
Inches/(mm) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
AETD0812 9 15 / 16 " (252) 12 13 / 16 " (325) 10 7 / 16 " (265) 13 5 / 16 " (338) 0.47 (0.04) 0.88 (0.08)
AETD1012 15 15 / 16 " (405) 12 13 / 16 " (325) 16 7 / 16 " (418) 13 5 / 16 " (338) 0.88 (0.08) 1.42 (0.13)
AETD2012 25 11 / 16 " (652) 12 13 / 16 " (325) 26 3 / 16 " (665) 13 5 / 16 " (338) 1.55 (0.14) 2.29 (0.21)
1
AETD2612 31 11 / 16 " (805) 12 13 / 16 " (325) 32 3 / 16 " (818) 13 5 / 16 " (338) 1.95 (0.18) 2.82 (0.26) Custom-size windows are available in ⁄8" (3) increments.
AETD2812 33 11 / 16 " (856) 12 13 / 16 " (325) 34 3 / 16 " (868) 13 5 / 16 " (338) 2.09 (0.19) 3.00 (0.28)
AETD3012 37 11 / 16 " (957) 12 13 / 16 " (325) 38 3 / 16 " (970) 13 5 / 16 " (338) 2.36 (0.22) 3.35 (0.31) Direct Set
AETD3612 43 11 / 16 " (1110) 12 13 / 16 " (325) 44 3 / 16 " (1122) 13 5 / 16 " (338) 2.77 (0.26) 3.89 (0.36)
AETD4012 50 3 / 4 " (1289) 12 13 / 16 " (325) 51 1 / 4 " (1302) 13 5 / 16 " (338) 3.25 (0.30) 4.52 (0.42)
AETD5012 62 3 / 4 " (1594) 12 13 / 16 " (325) 63 1 / 4 " (1607) 13 5 / 16 " (338) 4.07 (0.38) 5.58 (0.52)
AETD7029
Direct-Set Rectangular Entry Door Transom
AETD5412 66 3 / 4 " (1695) 12 13 / 16 " (325) 67 1 / 4 " (1708) 13 5 / 16 " (338) 4.34 (0.40) 5.94 (0.55) Direct Set
Direct Set
AETD6012 74 3 / 4 " (1899) 12 13 / 16 " (325) 75 1 / 4 " (1911) 13 5 / 16 " (338) 4.89 (0.45) 6.65 (0.62) Direct-set transoms (AETD) provide maximum
Sash Glazed
AETD7012 86 3 / 4 " (2203) 12 13 / 16 " (325) 87 1 / 4 " (2216) 13 5 / 16 " (338) 5.71 (0.53) 7.72 (0.72)
unobstructed glass. Direct-set dimensions and
AETD0817 9 15 / 16 " (252) 17 13 / 16 " (452) 10 7 / 16 " (265) 18 5 / 16 " (465) 0.71 (0.07) 1.23 (0.11) AETD7029
specifications shown.
AETD7029
AETD1017 15 15 / 16 " (405) 17 13 / 16 " (452) 16 7 / 16 " (418) 18 5 / 16 " (465) 1.33 (0.12) 1.97 (0.18) AETI7029
AETD2017 25 11 / 16 " (652) 17 13 / 16 " (452) 26 3 / 16 " (665) 18 5 / 16 " (465) 2.33 (0.22) 3.18 (0.30) Sash Glazed
AETD2617 31 11 / 16 " (805) 17 13 / 16 " (452) 32 3 / 16 " (818) 18 5 / 16 " (465) 2.95 (0.27) 3.92 (0.36) Sash Glazed
AETD2817 33 11 / 16 " (856) 17 13 / 16 " (452) 34 3 / 16 " (868) 18 5 / 16 " (465) 3.16 (0.29) 4.17 (0.39)
AETI7029-2
AETD3017 37 11 / 16 " (957) 17 13 / 16 " (452) 38 3 / 16 " (970) 18 5 / 16 " (465) 3.57 (0.33) 4.66 (0.43) AETI7029
AETD3617 43 11 / 16 " (1110) 17 13 / 16 " (452) 44 3 / 16 " (1122) 18 5 / 16 " (465) 4.19 (0.39) 5.40 (0.50) AETI7029
AETD4017 50 3 / 4 " (1289) 17 13 / 16 " (452) 51 1 / 4 " (1302) 18 5 / 16 " (465) 4.91 (0.46) 6.28 (0.58)
AETD5017 62 3 / 4 " (1594) 17 13 / 16 " (452) 63 1 / 4 " (1607) 18 5 / 16 " (465) 6.15 (0.57) 7.76 (0.72)
AETI7029-2
AETI7029-2
AETD5417 66 3 / 4 " (1695) 17 13 / 16 " (452) 67 1 / 4 " (1708) 18 5 / 16 " (465) 6.56 (0.61) 8.26 (0.77) Sash-Set Rectangular Entry Door Transoms
AETD6017 74 3 / 4 " (1899) 17 13 / 16 " (452) 75 1 / 4 " (1911) 18 5 / 16 " (465) 7.38 (0.69) 9.25 (0.86) Sash-set single (AETXXXX-1) and twin (AETXXXX-2)
AETD7017 86 3 / 4 " (2203) 17 13 / 16 " (452) 87 1 / 4 " (2216) 18 5 / 16 " (465) 8.61 (0.80) 10.73 (1.00)
transoms are also available. Contact your Andersen
AETD08111 9 15 / 16 " (252) 21 13 / 16 " (554) 10 7 / 16 " (265) 22 5 / 16 " (567) 0.91 (0.08) 1.51 (0.14)
AETD10111 15 15 / 16 " (405) 21 13 / 16 " (554) 16 7 / 16 " (418) 22 5 / 16 " (567) 1.69 (0.16) 2.41 (0.22) supplier for dimensions and specifications.
AETD20111 25 11 / 16 " (652) 21 13 / 16 " (554) 26 3 / 16 " (665) 22 5 / 16 " (567) 2.96 (0.27) 3.89 (0.36)
AETD26111 31 11 / 16 " (805) 21 13 / 16 " (554) 32 3 / 16 " (818) 22 5 / 16 " (567) 3.75 (0.35) 4.80 (0.45)
• "Transom Dimension" always refers to outside frame to frame dimension.
AETD28111 33 11 / 16 " (856) 21 13 / 16 " (554) 34 3 / 16 " (868) 22 5 / 16 " (567) 4.01 (0.37) 5.10 (0.47)
• "Minimum Rough Opening" dimensions may need to be increased to allow for
AETD30111 37 11 / 16 " (957) 21 13 / 16 " (554) 38 3 / 16 " (970) 22 5 / 16 " (567) 4.53 (0.42) 5.71 (0.53) use of building wraps, flashing, sill panning, brackets, fasteners or other items.
See pages 236-237 for more details.
continued on next page • Dimensions in parentheses are in millimeters or square meters.
