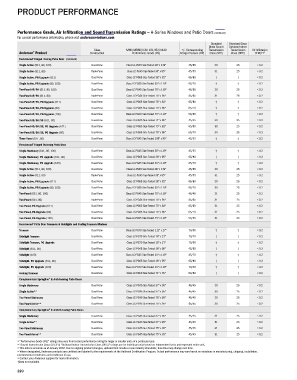

PRODUCT PERFORMANCE

Performance Grade, Air Infiltration and Sound Transmission Ratings — A-Series Windows and Patio Doors (continued)
For current performance information, please visit andersenwindows.com.
Standard Standard Glass
Glass Sound Outdoor/Indoor
Glass AAMA/WDMA/CSA 101/IS2/A440 +/- Corresponding Transmission Transmission Air Infiltration
Andersen Product Construction Performance Grade (PG) Design Pressure (DP) Class (STC) Class (OITC) CFM/FT 2
®
Frenchwood ® Hinged Inswing Patio Door (continued)
Single Active (611, 80, 100) Dual-Pane Class LC-PG45 Size Tested 38" x 119" 45/55 30 26 < 0.2
Single Active (611, 80) Triple-Pane Class LC-PG45 Size Tested 38" x 95" 45/55 31 25 < 0.2
Single Active, PG Upgrade (611) Dual-Pane Class LC-PG65 Size Tested 38" x 82" 65/80 † † < 0.2
Single Active, PG Upgrade (80, 100) Dual-Pane Class LC-PG65 Size Tested 38" x 119" 65/70 † † < 0.2
Two-Panel AP/PA (611, 80, 100) Dual-Pane Class LC-PG45 Size Tested 75" x 119" 45/55 30 25 < 0.2
Two-Panel AP/PA (611, 80) Triple-Pane Class LC-PG45 Size Tested 75" x 95" 45/45 31 26 < 0.2
Two-Panel AP/PA, PG Upgrade (611) Dual-Pane Class LC-PG65 Size Tested 75" x 82" 65/80 † † < 0.2
Two-Panel AP/PA, PG Upgrade (80) Dual-Pane Class LC-PG65 Size Tested 75" x 95" 65/70 † † < 0.2
Two-Panel AP/PA, PG Upgrade (100) Dual-Pane Class LC-PG50 Size Tested 75" x 119" 50/65 † † < 0.2
Two-Panel AS/SA/SS (611, 80) Dual-Pane Class LC-PG45 Size Tested 71" x 95" 45/55 30 25 < 0.2
Two-Panel AS/SA/SS, PG Upgrade (611) Dual-Pane Class LC-PG65 Size Tested 75" x 82" 65/80 30 25 < 0.2
Two-Panel AS/SA/SS, PG Upgrade (80) Dual-Pane Class LC-PG65 Size Tested 75" x 95" 65/70 30 25 < 0.2
Three-Panel (611, 80) Dual-Pane Class LC-PG45 Size Tested 106" x 95" 45/55 † † < 0.2
Frenchwood ® Hinged Outswing Patio Door
Single Stationary (611, 80, 100) Dual-Pane Class LC-PG45 Size Tested 38" x 119" 45/55 † † < 0.2
Single Stationary, PG Upgrade (611, 80) Dual-Pane Class LC-PG65 Size Tested 38" x 95" 65/80 † † < 0.2
Single Stationary, PG Upgrade (100) Dual-Pane Class LC-PG65 Size Tested 38" x 119" 65/70 † † < 0.2
Single Active (611, 80, 100) Dual-Pane Class LC-PG45 Size Tested 38" x 119" 45/55 30 25 < 0.2
Single Active (611, 80) Triple-Pane Class LC-PG45 Size Tested 38" x 95" 45/55 31 25 < 0.2
Single Active, PG Upgrade (611) Dual-Pane Class LC-PG65 Size Tested 38" x 82" 65/80 30 25 < 0.2
Single Active, PG Upgrade (80, 100) Dual-Pane Class LC-PG65 Size Tested 38" x 119" 65/70 30 25 < 0.2
Two-Panel (611, 80, 100) Dual-Pane Class LC-PG45 Size Tested 75" x 119" 45/45 31 25 < 0.2
Two-Panel (611, 80) Triple-Pane Class LC-PG45 Size Tested 75" x 95" 45/45 31 25 < 0.2
Two Panel, PG Upgrade (611) Dual-Pane Class LC-PG65 Size Tested 75" x 82" 65/80 31 25 < 0.2
Two Panel, PG Upgrade (80) Dual-Pane Class LC-PG65 Size Tested 75" x 95" 65/70 31 25 < 0.2
Two Panel, PG Upgrade (100) Dual-Pane Class LC-PG55 Size Tested 75" x 119" 55/55 31 25 < 0.2
Frenchwood ® Patio Door Transoms & Sidelights and Venting Transom Windows
Transom Dual-Pane Class LC-PG70 Size Tested 112" x 27" 70/80 † † < 0.2
Sidelight Transom Dual-Pane Class LC-PG70 Size Tested 18" x 27" 70/70 † † < 0.2
Sidelight Transom, PG Upgrade Dual-Pane Class LC-PG70 Size Tested 18" x 27" 70/80 † † < 0.2
Sidelight (611, 80) Dual-Pane Class LC-PG45 Size Tested 18" x 95" 45/55 † † < 0.2
Sidelight (100) Dual-Pane Class LC-PG45 Size Tested 18" x 119" 45/70 † † < 0.2
Sidelight, PG Upgrade (611, 80) Dual-Pane Class LC-PG65 Size Tested 18" x 95" 65/80 † † < 0.2
Sidelight, PG Upgrade (100) Dual-Pane Class LC-PG70 Size Tested 18" x 119" 70/80 † † < 0.2
Venting Transom Dual-Pane Class LC-PG50 Size Tested 71" x 35" 50/50 † † < 0.2
Complementary Springline ™ & Arch Inswing Patio Doors
Single Stationary Dual-Pane Class LC-PG45 Size Tested 37" x 95" 45/45 30 25 < 0.2
Single Active** Dual-Pane Class LC-PG45 Size Tested 37" x 95" 45/45 30 25 < 0.2
Two-Panel Stationary Dual-Pane Class LC-PG45 Size Tested 75" x 95" 45/45 30 25 < 0.2
Two-Panel Active** Dual-Pane Class LC-PG45 Size Tested 75" x 95" 45/45 30 25 < 0.2
Complementary Springline ™ & Arch Outswing Patio Doors
Single Stationary Dual-Pane Class LC-PG45 Size Tested 37" x 95" 45/45 31 25 < 0.2
Single Active** Dual-Pane Class LC-PG45 Size Tested 37" x 95" 45/45 31 25 < 0.2
Two-Panel Stationary Dual-Pane Class LC-PG45 Size Tested 75" x 95" 45/45 31 25 < 0.2
Two-Panel Active** Dual-Pane Class LC-PG45 Size Tested 75" x 95" 45/45 31 25 < 0.2
• "Performance Grade (PG)" ratings may vary from tested performance rating for larger or smaller units of a particular type.
• "Sound Transmission Class (STC)" & "Outdoor/Indoor Transmission Class (OITC)" ratings are for individual units based on independent tests and represent entire unit.
• This data is accurate as of January 2018. Due to ongoing product changes, updated test results or new industry standards, this data may change over time.
• Where designated, Andersen products are certified and labeled to the requirements of the Hallmark Certification Program. Actual performance may vary based on variations in manufacturing, shipping, installation,
environmental conditions and conditions of use.
• Contact your Andersen supplier for more information.
†Data not available.
