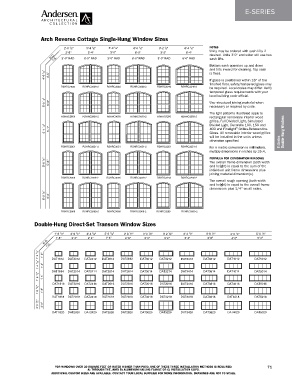

Page 73 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Arch Reverse Cottage Single-Hung Window Sizes

1
1
1
1
2'-8 /2" 5'-4 /2" 3'-0 1 /2" 6'-0 1 /2" 3'-2 /2" 6'-4 /2" NOTES
Units may be ordered with sash lifts if
2'-8" 5'-4" 3'-0" 6'-0" 3'-2" 6'-4"
R.O. F.S. 3'-0" RAD 6'-0" RAD 3'-0" RAD 6'-0" RAD 3'-0" RAD 6'-0" RAD desired. Units 3'0" and wider will use two
sash lifts.
Bottom sash operates up and down
and tilts inward for cleaning. Top sash
4'-6 1 /2" 4'-6" is fixed.
If glass is positioned within 18" of the
finished floor, safety/tempered glass may
be required. Local codes may differ. Verify
RSHRC2846 RSHRC2846-2 RSHRC3046 RSHRC3046-2 RSHRC3246 RSHRC3246-2
tempered glass requirements with your
local building code official.
5'-0 1 /2" 5'-0" Use structural joining material when
necessary or required by code.
The light patterns illustrated apply to
RSHRC2850 RSHRC2850-2 RSHRC3050 RSHRC3050-2 RSHRC3250 RSHRC3250-2 rectangular removable interior wood
grilles, Full Divided Light, Simulated
Divided Light, Decorelle 100, 150 and
5'-1 1 /2" 5'-1" 400 and Finelight Grilles-Between-the- Double-Hung Windows
™
Glass. All removable interior wood grilles
will be installed in the units unless
otherwise specified. E-Series
RSHRC2851 RSHRC2851-2 RSHRC3051 RSHRC3051-2 RSHRC3251 RSHRC3251-2 For a metric conversion in millimeters,
multiply dimensions in inches by 25.4.
5'-6 1 /2" 5'-6" FORMULA FOR COMBINATION WINDOWS
The overall frame dimension (both width
and height) is equal to the sum of the
individual unit frame dimensions plus
joining material dimension(s).
RSHRC2856 RSHRC2856-2 RSHRC3056 RSHRC3056-2 RSHRC3256 RSHRC3256-2
The overall rough opening (both width
and height) is equal to the overall frame
dimensions plus 1/4" on all sides.
6'-0 1 /2" 6'-0"
RSHRC2860 RSHRC2860-2 RSHRC3060 RSHRC3060-2 RSHRC3260 RSHRC3260-2

Double-Hung Direct-Set Transom Window Sizes

1
1
1' 8 /2" 2' 0 /2" 2' 4 1 /2" 2' 6 1 /2" 2' 8 1 /2" 3' 0 1 /2" 3' 2 /2" 3' 4 1 /2" 3' 8 1 /2" 4' 0 1 /2" 5' 0 /2"
1
1
1' 8" 2' 0" 2' 4" 2' 6" 2' 8" 3' 0" 3' 2" 3' 4" 3' 8" 4' 0" 5' 0"
R.O. F.S.
1' 2 1 /2" 1' 2" DAT1812 DAT2012 DAT2412 DAT2612 DAT2812 DAT3012 DAT3212 DAT3412 DAT3812 DAT4012 DAT5012
1' 4 1 /2" 1' 4"
DAT1814 DAT2014 DAT2414 DAT2614 DAT2814 DAT3014 DAT3214 DAT3414 DAT3814 DAT4014 DAT5014
1' 6 1 /2" 1' 6"
DAT1816 DAT2016 DAT2416 DAT2616 DAT2816 DAT3016 DAT3216 DAT3416 DAT3816 DAT4016 DAT5016
1' 8 1 /2" 1' 8"
DAT1818 DAT2018 DAT2418 DAT2618 DAT2818 DAT3018 DAT3218 DAT3418 DAT3818 DAT4018 DAT5018
2' 0 1 /2" 2' 0"

DAT1820 DAT2020 DAT2420 DAT2620 DAT2820 DAT3020 DAT3220 DAT3420 DAT3820 DAT4020 DAT5020

FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED: 71
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
