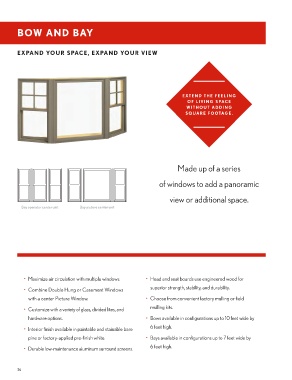

BOW AND BAY

EXPAND YOUR SPACE, EXPAND YOUR VIEW

EXTEND THE FEELING
OF LIVING SPACE
WITHOUT ADDING
SQUARE FOOTAGE.

Made up of a series

of windows to add a panoramic

view or additional space.

Bay operator center unit Bay picture center unit

• Maximize air circulation with multiple windows. • Head and seat boards use engineered wood for

• Combine Double Hung or Casement Windows superior strength, stability, and durability.
with a center Picture Window. • Choose from convenient factory mulling or field

• Customize with a variety of glass, divided lites, and mulling kits.
hardware options. • Bows available in configurations up to 10 feet wide by

• Interior finish available in paintable and stainable bare 6 feet high.
pine or factory-applied pre-finish white. • Bays available in configurations up to 7 feet wide by

• Durable low-maintenance aluminum surround screens. 6 feet high.

26

Rough Opening Rough Opening

Rough Opening Rough Opening
4 9/16" 4 9/16"
(116) (116)
Projection Projection
4 9/16" 4 9/16"
1/4" 1/4" (116) 1/4" 1/4" (116)
(6) (6) (6) Projection (6) Projection
30 ˚ 30 ˚
Exterior of Exterior of
Sheathing 1/4" Sheathing 1/4" 1/4" 1/4"
Masonry Opening (6) Masonry Opening 30 ˚ (6) (6) 30 ˚ (6)
Exterior of Exterior of
Sheathing Sheathing
Masonry Opening Masonry Opening
