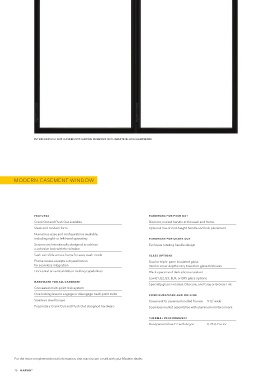

INTERIOR PUSH OUT CASEMENTS SHOWN IN EBONY WITH MATTE BLACK HARDWARE EXTERIOR CASEMENTS SHOWN IN EBONY

MODERN CASEMENT WINDOW

FEATURES HARDWARE FOR PUSH OUT
UNIT TYPE AIR TESTED WATER TESTED DESIGN CERTIFICATION MAX FRAME SIZE UNIT
Crank Out and Push Out available Discreet, nested handle at the sash and frame TO PSF TO PSF PRESSURE RATING
Sleek and modern form Optional low or mid-height handle and lock placement
Numerous sizes and configurations available, CASEMENT WIDTH HEIGHT
including right- or left-hand operating HARDWARE FOR CR ANK OUT
Screens are intentionally designed to achieve Exclusive rotating handle design CRANK OUT AND PUSH OUT 1.57 12.1 50 CW-PG50-FW 36" 102"
a cohesive look with the window
Sash can slide across frame for easy wash mode GLASS OPTIONS CRANK OUT AND PUSH OUT 1.57 12.1 50 CW-PG50-FW 40" 96"
Frame recess accepts a drywall return Dual or triple-pane insulated glass
for seamless integration Interior cover depths vary based on glass thickness CRANK OUT AND PUSH OUT 1.57 12.1 50 CW-PG50-FW 44" 92"
Horizontal or vertical ribbon mulling capabilities Black spacer and dark silicone sealant
Low E1, E2, E3, ELR, or ERS glass options
HARDWARE FOR ALL CASEMENT MULL ASSEMBLIES WIDTH HEIGHT
Specialty glass: Frosted, Obscure, and Gray or Bronze Tint
Concealed multi-point lock system
ALL PRODUCTS 1.57 12.1 40 CW-PG40-FW 168" 96"
One locking lever to engage or disengage multi-point locks CONFIGUR ATIONS AND MULLING
Stainless steel hinges Casement to casement mulled frames 5 ¹/2" wide
ALL PRODUCTS 1.57 12.1 40 CW-PG40-FW 96" 168"
Proprietary Crank Out and Push Out designed hardware Seamless mulled assemblies with aluminum reinforcement

THE RMAL PE RFORMANCE
Dual-pane IG low E2 with Argon 0.28 U-Factor

For the most complete technical information, visit marvin.com or talk with your Modern dealer.
