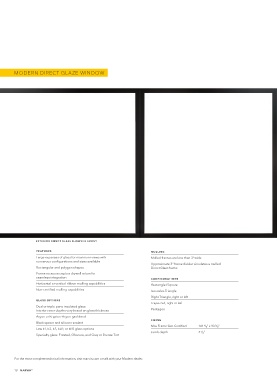

Page 18 - Marvin Signature Modern Product Catalog 2020

MODERN DIRECT GLAZE WINDOW

EXTERIOR DIRECT GLAZE SHOWN IN EBONY

FE ATUR E S MULLING SINGLE UNIT VE R TIC AL OR HOR IZONTAL MULLE D UNIT S
PE R FOR MANCE R ATINGS PE R FOR MANCE R ATINGS
Large expanses of glass for maximum views with Mulled frames are less than 3" wide
numerous configurations and sizes available Air Tested to PSF 6.24 Air Tested to PSF 1.57
Approximate 3" frame divider simulates a mulled
Rectangular and polygon shapes Direct Glaze frame Water Tested to PSF 7.5 Water Tested to PSF 6.0
Frame recess accepts a drywall return for Performance Grade CW-PG40-FW Performance Grade CW-PG40-FW
seamless integration CONFIGUR ATIONS Max Frame Size Height 93 ³/8" Max Frame Size Height 96"
Horizontal or vertical ribbon mulling capabilities Rectangle /Square Max Frame Size Width 141 ³/8" Max Frame Size Width 168"
Non-certified mulling capabilities Isosceles Triangle Max Tributary Width or Height 84"

Right Triangle, right or left
GL A SS OP TIONS
Trapezoid, right or left THE RMAL PE RFORMANCE
Dual or triple-pane insulated glass
Interior cover depths vary based on glass thickness Pentagon Dual-pane IG low E2 with Argon 0.28 U-Factor
Argon or Krypton-Argon gas blend
SIZING
Black spacer and silicone sealant
Max Frame Size Certified 141 ³/8" x 93 ³/8"
Low E1, E2, E3, ELR, or ERS glass options
Jamb depth 4 ¹/2"
Specialty glass: Frosted, Obscure, and Gray or Bronze Tint

For the most complete technical information, visit marvin.com or talk with your Modern dealer.
