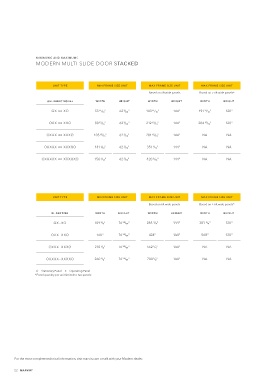

MINIMUMS AND MA XIMUMS MINIMUMS AND MA XIMUMS
MODERN MULTI-SLIDE DOOR STACKED MODERN MULTI-SLIDE DOOR POCKET
UNIT T YPE MIN FR AME SIZE UNIT MA X FR AME SIZE UNIT MA X FR AME SIZE UNIT UNIT T YPE MIN FR AME SIZE UNIT MA X FR AME SIZE UNIT MA X FR AME SIZE UNIT
Based on 6ft wide panels Based on > 6ft wide panels* Based on 6ft wide panels Based on > 6ft wide panels*
UNI-DIREC TIONAL WIDTH HEIGHT WIDTH HEIGHT WIDTH HEIGHT UNI-DIREC TIONAL WIDTH HEIGHT WIDTH HEIGHT WIDTH HEIGHT
OX OR XO 55 ¹¹/16" 62 ³/64" 143 ¹¹/16" 144" 191 ¹¹/16" 120" PX OR XP 30 ⁹/16" 68 ¹⁹/64" 74 ⁹/16" 144" 98 ⁹/16" 120"
OXX OR XXO 80 ¹³/16" 62 ³/64" 212 ¹³/16" 144" 284 ¹³/16" 120" PXX OR XXP 55 ¹¹/16" 68 ¹⁹/64" 143 ¹¹/16" 144" 191 ¹¹/16" 120"
OXXX OR XXXO 105 ¹⁵/16" 62 ³/64" 281 ¹⁵/16" 144" NA NA PXXX OR XXXP 80 ¹³/16" 68 ¹⁹/64" 212 ¹³/16" 144" NA NA
OXXXX OR XXXXO 131 ¹/16" 62 ³/64" 351 ¹/16" 144" NA NA PXXXX OR XXXXP 105 ¹⁵/16" 68 ¹⁹/64" 281 ¹⁵/16" 144" NA NA
OXXXXX OR XXXXXO 156 ³/16" 62 ³/64" 420 ³/16" 144" NA NA PXXXXX OR XXXXXP 131 ¹/16" 68 ¹⁹/64" 351 ¹/16" 144" NA NA
PXXXXXX OR XXXXXXP 156 ³/16" 68 ¹⁹/64" 420 ³/16" 144" NA NA
UNIT T YPE MIN FR AME SIZE UNIT MA X FR AME SIZE UNIT MA X FR AME SIZE UNIT UNIT T YPE MIN FR AME SIZE UNIT MA X FR AME SIZE UNIT MA X FR AME SIZE UNIT
Based on 6ft wide panels Based on > 6ft wide panels* Based on 6ft wide panels Based on > 6ft wide panels*
BI-PARTING WIDTH HEIGHT WIDTH HEIGHT WIDTH HEIGHT BI-PARTING WIDTH HEIGHT WIDTH HEIGHT WIDTH HEIGHT
-
OX XO 109 ³/4" 76 ³⁹/64" 285 ³/4" 144" 381 ³/4" 120" PX - XP 59 ¹/2" 80 ⁵⁵/64" 147 ¹/2" 144" 195 ¹/2" 120"
-
OXX XXO 160" 76 ³⁹/64" 424" 144" 568" 120" PXX - XXP 109 ³/4" 80 ⁵⁵/64" 285 ³/4" 144" 381 ³/4" 120"
-
OXXX XXXO 210 ¹/4" 76 ³⁹/64" 562 ¹/4" 144" NA NA PXXX - XXXP 160" 80 ⁵⁵/64" 424" 144" NA NA
-
OXXXX XXXXO 260 ¹/2" 76 ³⁹/64" 700 ¹/2" 144" NA NA PXXXX - XXXXP 210 ¹/4" 80 ⁵⁵/64" 562 ¹/4" 144" NA NA
O = Stationary Panel X = Operating Panel PXXXXX - XXXXXP 260 ¹/2" 80 ⁵⁵/64" 700 ¹/2" 144" NA NA
* Panel quantity per unit limited to two panels
P = Pocket Panel X = Operating Panel
* Panel quantity per unit limited to two panels
For the most complete technical information, visit marvin.com or talk with your Modern dealer.
