A-SERIES

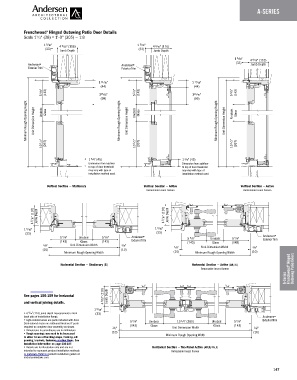

Frenchwood Hinged Outswing Patio Door Details
®
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8
1
1 5 ⁄16" 4 9 ⁄16" (116) 1 5 ⁄16" 4 9 ⁄16" (116)
(33) Jamb Depth (33) Jamb Depth
1 5 ⁄16" 4 9 ⁄16" (116)
(33)
Andersen® Andersen® Jamb Depth
Exterior Trim Exterior Trim

1 11 ⁄16" 1 11 ⁄16"
(44) (44)
5 5 ⁄8" (143) 3 15 ⁄16" 5 5 ⁄8" (143) 3 15 ⁄16" 5 5 ⁄8" (143)
(99) (99)
Minimum Rough Opening Height Unit Dimension Height Unobstr. Glass Minimum Rough Opening Height Unit Dimension Height Unobstr. Glass Minimum Rough Opening Height Unit Dimension Height Unobstr. Glass

10 1 ⁄ 2" (267) 10 1 ⁄ 2" (267) 10 1 ⁄ 2" (267)

1 3 ⁄4" (45) 1 3 ⁄4" (45)
Dimension from subfloor Dimension from subfloor
to top of door threshold to top of door threshold
may vary with type of may vary with type of
installation method used. installation method used.
Vertical Section — Stationary Vertical Section — Active Vertical Section — Active
Retractable Insect Screen Retractable Insect Screen

4 9 ⁄16" (116) Jamb Depth 4 9 ⁄16" (116) Jamb Depth

1 5 ⁄16" 1 5 ⁄16"
(33) (33)
5 5 ⁄8" Unobstr. 5 5 ⁄8" Andersen® 5 5 ⁄8" Unobstr. 5 5 ⁄8" Andersen®
Exterior Trim
(143) Glass (143) Exterior Trim (143) Glass (143)
3 ⁄8" Unit Dimension Width 3 ⁄8" 3 ⁄8" Unit Dimension Width 3 ⁄8"
(10) (10)
Minimum Rough Opening Width (10) Minimum Rough Opening Width (10)
Horizontal Section — Stationary (S) Horizontal Section — Active (AR/AL) Frenchwood ® Hinged
Retractable Insect Screen Outswing Patio Doors
A-Series

See pages 156-159 for horizontal 4 9 ⁄16" (116) Jamb Depth
and vertical joining details.
1 5 ⁄16"
9
• 4 / 16 " (116) jamb depth measurement is from (33)
back side of installation flange. Andersen®
• Light-colored areas are parts included with door. 5 5 ⁄8" Unobstr. 10 1 ⁄4" (260) Unobstr. 5 5 ⁄8" Exterior Trim
Dark-colored areas are additional Andersen ® parts
required to complete door assembly as shown. 3 ⁄8" (143) Glass Unit Dimension Width Glass (143) 3 ⁄8"
• Dimensions in parentheses are in millimeters.
• Rough openings may need to be increased (10) Minimum Rough Opening Width (10)
to allow for use of building wraps, flashing, sill
panning, brackets, fasteners or other items. See
installation information on page 236-237.
• Details are for illustration only and are not Horizontal Section — Two-Panel Active (APLR/PALR)
intended to represent product installation methods Retractable Insect Screen
or materials. Refer to product installation guides at
andersenwindows.com.
147
