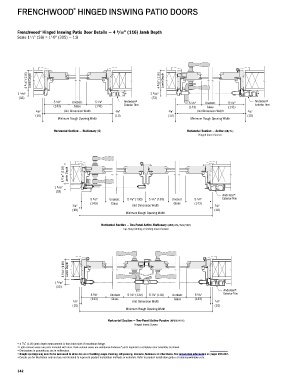

FRENCHWOOD HINGED INSWING PATIO DOORS
®

9
Frenchwood Hinged Inswing Patio Door Details — 4 /16" (116) Jamb Depth
®
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8
1

4 9 ⁄16" (116) Jamb Depth 4 9 ⁄16" (116) Jamb Depth

1 5 ⁄16" 1 5 ⁄16"
(33) (33)
5 5 ⁄8" Unobstr. 5 5 ⁄8" Andersen® 5 5 ⁄8" Unobstr. 5 5 ⁄8" Andersen®
(143) Glass (143) Exterior Trim (143) Glass (143) Exterior Trim
3 ⁄8" Unit Dimension Width 3 ⁄8" 3 ⁄8" Unit Dimension Width 3 ⁄8"
(10) (10) (10) (10)
Minimum Rough Opening Width Minimum Rough Opening Width

Horizontal Section — Stationary (S) Horizontal Section — Active (AR/AL)
Hinged Insect Screen

4 9 ⁄16" (116) Jamb Depth

1 5 ⁄16"
(33)
Andersen®
5 5 ⁄8" Unobstr. 5 1 ⁄8" (130) 5 1 ⁄8" (130) Unobstr. 5 5 ⁄8" Exterior Trim
(143) Glass Glass (143)
3 ⁄8" Unit Dimension Width 3 ⁄8"
(10) (10)
Minimum Rough Opening Width

Horizontal Section — Two-Panel Active-Stationary (ASR/ASL/SAL/SAR)
Top-Hung Gliding or Gliding Insect Screen

4 9 ⁄16" (116) Jamb Depth

1 5 ⁄16"
(33)
Andersen®
5 5 ⁄8" Unobstr. 5 1 ⁄8" (130) 5 1 ⁄8" (130) Unobstr. 5 5 ⁄8" Exterior Trim
(143) Glass Glass (143)
3 ⁄8" Unit Dimension Width 3 ⁄8"
(10) (10)
Minimum Rough Opening Width

Horizontal Section — Two-Panel Active-Passive (APLR/PALR)
Hinged Insect Screen

9
• 4 / 16 " (116) jamb depth measurement is from back side of installation flange.
• Light-colored areas are parts included with door. Dark-colored areas are additional Andersen ® parts required to complete door assembly as shown.
• Dimensions in parentheses are in millimeters.
• Rough openings may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See installation information on pages 236-237.
• Details are for illustration only and are not intended to represent product installation methods or materials. Refer to product installation guides at andersenwindows.com.
