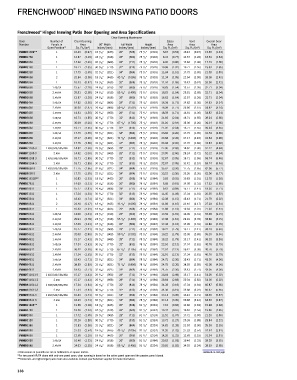

FRENCHWOOD HINGED INSWING PATIO DOORS
®

Frenchwood Hinged Inswing Patio Door Opening and Area Specifications
®
Clear Opening Maximums
Door Number of Clear Opening Glass Vent Overall Door
Number Panels in Area 90 ° Width Full Width Height Area Area Area
Open Position* Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
FWHID2168S** 1 10.43 (0.97) 18 5 / 16 " (465) 20" (508) 75 1 / 2 " (1918) 5.67 (0.53) 10.43 (0.97) 13.30 (1.24)
FWHID2768 1 13.57 (1.26) 24 5 / 16 " (618) 26" (660) 75 1 / 2 " (1918) 8.31 (0.77) 13.57 (1.26) 16.61 (1.54)
FWHID2968 1 14.62 (1.36) 26 5 / 16 " (668) 28" (711) 75 1 / 2 " (1918) 9.20 (0.85) 14.62 (1.36) 17.72 (1.65)
FWHID3168 1 16.71 (1.55) 30 5 / 16 " (770) 32" (813) 75 1 / 2 " (1918) 10.96 (1.02) 16.71 (1.55) 19.93 (1.85)
FWHID3368 1 17.75 (1.65) 32 5 / 16 " (821) 34" (864) 75 1 / 2 " (1918) 11.84 (1.10) 17.75 (1.65) 21.03 (1.95)
FWHID4068 2 22.54 (2.09) 18 5 / 16 " (465) 43 1 / 8 " (1095) 75 1 / 2 " (1918) 11.34 (1.05) 22.54 (2.09) 26.09 (2.42)
FWHID4068 1 10.43 (0.97) 18 5 / 16 " (465) 20" (508) 75 1 / 2 " (1918) 11.34 (1.05) 10.43 (0.97) 26.09 (2.42)
FWHID5068 1 AS/SA 13.57 (1.26) 24 5 / 16" (618) 26" (660) 75 1 / 2" (1918) 16.63 (1.54) 13.57 (1.26) 32.71 (3.04)
FWHID5068 2 AP/PA 28.81 (2.68) 24 5 / 16 " (618) 55 1 / 8 " (1400) 75 1 / 2 " (1918) 16.63 (1.54) 28.81 (2.68) 32.71 (3.04)
FWHID5068 1 AP/PA 13.57 (1.26) 24 5 / 16 " (618) 26" (660) 75 1 / 2 " (1918) 16.63 (1.54) 13.57 (1.26) 32.71 (3.04)
FWHID5468 1 AS/SA 14.62 (1.36) 26 5 / 16 " (668) 28" (711) 75 1 / 2 " (1918) 18.39 (1.71) 14.62 (1.36) 34.92 (3.24)
FWHID5468 2 AP/PA 30.90 (2.87) 26 5 / 16 " (668) 59 1 / 8 " (1502) 75 1 / 2 " (1918) 18.39 (1.71) 30.90 (2.87) 34.92 (3.24)
FWHID5468 1 AP/PA 14.61 (1.36) 26 5 / 16 " (668) 28" (711) 75 1 / 2 " (1918) 18.39 (1.71) 14.61 (1.36) 34.92 (3.24)
FWHID6068 1 AS/SA 16.71 (1.55) 30 5 / 16 " (770) 32" (813) 75 1 / 2 " (1918) 21.92 (2.04) 16.71 (1.55) 39.34 (3.65)
FWHID6068 2 AP/PA 35.08 (3.26) 30 5 / 16 " (770) 67 1 / 8 " (1705) 75 1 / 2 " (1918) 21.92 (2.04) 35.08 (3.26) 39.34 (3.65)
FWHID6068 1 AP/PA 16.71 (1.55) 30 5 / 16 " (770) 32" (813) 75 1 / 2 " (1918) 21.92 (2.04) 16.71 (1.55) 39.34 (3.65)
FWHID6468 1 AS/SA 17.75 (1.65) 32 5 / 16 " (821) 34" (864) 75 1 / 2 " (1918) 23.68 (2.20) 17.75 (1.65) 41.54 (3.86)
FWHID6468 2 AP/PA 37.17 (3.45) 32 5 / 16 " (821) 71 1 / 8 " (1806) 75 1 / 2 " (1918) 23.68 (2.20) 37.17 (3.45) 41.54 (3.86)
FWHID6468 1 AP/PA 17.75 (1.65) 32 5 / 16 " (821) 34" (864) 75 1 / 2 " (1918) 23.68 (2.20) 17.75 (1.65) 41.54 (3.86)
FWHID71168-3 1 ASS/SAS/SSA/ASA 14.62 (1.36) 26 5 / 16 " (668) 28" (711) 75 1 / 2 " (1918) 27.95 (2.60) 14.62 (1.36) 52.12 (4.84)
FWHID71168-3 2 ASA 14.62 (1.36) 26 5 / 16 " (668) 28" (711) 75 1 / 2 " (1918) 27.95 (2.60) 29.24 (2.72) 52.12 (4.84)
FWHID81168-3 1 ASS/SAS/SSA/ASA 16.71 (1.55) 30 5 / 16 " (770) 32" (813) 75 1 / 2 " (1918) 32.87 (3.05) 16.71 (1.55) 58.74 (5.46)
FWHID81168-3 2 ASA 16.71 (1.55) 30 5 / 16 " (770) 32" (813) 75 1 / 2 " (1918) 32.87 (3.05) 33.42 (3.10) 58.74 (5.46)
FWHID9668-3 1 ASS/SAS/SSA/ASA 17.75 (1.65) 32 5 / 16 " (821) 34" (864) 75 1 / 2 " (1918) 35.52 (3.30) 17.75 (1.65) 62.06 (5.77)
FWHID9668-3 2 ASA 17.75 (1.65) 32 5 / 16 " (821) 34" (864) 75 1 / 2 " (1918) 35.52 (3.30) 35.50 (3.30) 62.06 (5.77)
FWHID21611S** 1 10.83 (1.01) 18 5 / 16 " (465) 20" (508) 78 1 / 8 " (1984) 5.93 (0.55) 10.83 (1.01) 13.78 (1.28)
FWHID27611 1 14.09 (1.31) 24 5 / 16 " (618) 26" (660) 78 1 / 8 " (1984) 8.69 (0.81) 14.09 (1.31) 17.22 (1.60)
FWHID29611 1 15.17 (1.41) 26 5 / 16 " (668) 28" (711) 78 1 / 8 " (1984) 9.61 (0.89) 15.17 (1.41) 18.36 (1.71)
FWHID31611 1 17.34 (1.61) 30 5 / 16 " (770) 32" (813) 78 1 / 8 " (1984) 11.45 (1.06) 17.34 (1.61) 20.65 (1.92)
FWHID33611 1 18.43 (1.71) 32 5 / 16 " (821) 34" (864) 78 1 / 8 " (1984) 12.38 (1.15) 18.43 (1.71) 21.79 (2.02)
FWHID40611 2 23.40 (2.17) 18 5 / 16 " (465) 43 1 / 8 " (1095) 78 1 / 8 " (1984) 11.86 (1.10) 23.40 (2.17) 27.03 (2.51)
FWHID40611 1 10.83 (1.01) 18 5 / 16 " (465) 20" (508) 78 1 / 8 " (1984) 11.86 (1.10) 10.83 (1.01) 27.03 (2.51)
FWHID50611 1 AS/SA 14.09 (1.31) 24 5 / 16 " (618) 26" (660) 78 1 / 8 " (1984) 17.38 (1.61) 14.09 (1.31) 33.89 (3.15)
FWHID50611 2 AP/PA 29.91 (2.78) 24 5 / 16 " (618) 55 1 / 8 " (1400) 78 1 / 8 " (1984) 17.38 (1.61) 29.91 (2.78) 33.89 (3.15)
FWHID50611 1 AP/PA 14.09 (1.31) 24 5 / 16 " (618) 26" (660) 78 1 / 8 " (1984) 17.38 (1.61) 14.09 (1.31) 33.89 (3.15)
FWHID54611 1 AS/SA 15.17 (1.41) 26 5 / 16 " (668) 28" (711) 78 1 / 8 " (1984) 19.22 (1.79) 15.17 (1.41) 36.18 (3.36)
FWHID54611 2 AP/PA 32.08 (2.98) 26 5 / 16 " (668) 59 1 / 8 " (1502) 78 1 / 8 " (1984) 19.22 (1.79) 32.08 (2.98) 36.18 (3.36)
FWHID54611 1 AP/PA 15.17 (1.41) 26 5 / 16 " (668) 28" (711) 78 1 / 8 " (1984) 19.22 (1.79) 15.17 (1.41) 36.18 (3.36)
FWHID60611 1 AS/SA 17.34 (1.61) 30 5 / 16 " (770) 32" (813) 78 1 / 8 " (1984) 22.91 (2.13) 17.34 (1.61) 40.76 (3.79)
FWHID60611 2 AP/PA 36.42 (3.38) 30 5 / 16 " (770) 67 1 / 8 " (1705) 78 1 / 8 " (1984) 22.91 (2.13) 36.42 (3.38) 40.76 (3.79)
FWHID60611 1 AP/PA 17.34 (1.61) 30 5 / 16 " (770) 32" (813) 78 1 / 8 " (1984) 22.91 (2.13) 17.34 (1.61) 40.76 (3.79)
FWHID64611 1 AS/SA 18.43 (1.71) 32 5 / 16 " (821) 34" (864) 78 1 / 8 " (1984) 24.75 (2.30) 18.43 (1.71) 43.05 (4.00)
FWHID64611 2 AP/PA 38.59 (3.59) 32 5 / 16 " (821) 71 1 / 8 " (1806) 78 1 / 8 " (1984) 24.75 (2.30) 38.59 (3.59) 43.05 (4.00)
FWHID64611 1 AP/PA 18.43 (1.71) 32 5 / 16 " (821) 34" (864) 78 1 / 8 " (1984) 24.75 (2.30) 18.43 (1.71) 43.05 (4.00)
FWHID711611-3 1 ASS/SAS/SSA/ASA 15.17 (1.41) 26 5 / 16 " (668) 28" (711) 78 1 / 8 " (1984) 28.84 (2.68) 15.17 (1.41) 54.00 (5.02)
FWHID711611-3 2 ASA 15.17 (1.41) 26 5 / 16 " (668) 28" (711) 78 1 / 8 " (1984) 28.84 (2.68) 30.34 (2.82) 54.00 (5.02)
FWHID811611-3 1 ASS/SAS/SSA/ASA 17.34 (1.61) 30 5 / 16 " (770) 32" (813) 78 1 / 8 " (1984) 34.36 (3.19) 17.34 (1.61) 60.87 (5.65)
FWHID811611-3 2 ASA 17.34 (1.61) 30 5 / 16 " (770) 32" (813) 78 1 / 8 " (1984) 34.36 (3.19) 34.68 (3.22) 60.87 (5.65)
FWHID96611-3 1 ASS/SAS/SSA/ASA 18.43 (1.71) 32 5 / 16 " (821) 34" (864) 78 1 / 8 " (1984) 37.14 (3.45) 18.43 (1.71) 64.30 (5.97)
FWHID96611-3 2 ASA 18.43 (1.71) 32 5 / 16 " (821) 34" (864) 78 1 / 8 " (1984) 37.14 (3.45) 36.86 (3.42) 64.30 (5.97)
FWHID2180S** 1 12.65 (1.18) 18 5 / 16 " (465) 20" (508) 91 1 / 2 " (2324) 7.10 (0.66) 12.65 (1.18) 15.98 (1.48)
FWHID2780 1 16.46 (1.53) 24 5 / 16 " (618) 26" (660) 91 1 / 2 " (2324) 10.41 (0.97) 16.46 (1.53) 19.96 (1.85)
FWHID2980 1 17.72 (1.65) 26 5 / 16 " (668) 28" (711) 91 1 / 2 " (2324) 11.52 (1.07) 17.72 (1.65) 21.28 (1.98)
FWHID3180 1 20.26 (1.88) 30 5 / 16 " (770) 32" (813) 91 1 / 2 " (2324) 13.72 (1.27) 20.26 (1.88) 23.94 (2.22)
FWHID3380 1 21.53 (2.00) 32 5 / 16 " (821) 34" (864) 91 1 / 2 " (2324) 14.82 (1.38) 21.53 (2.00) 25.26 (2.35)
FWHID4080 2 27.33 (2.54) 18 5 / 16 " (465) 43 1 / 8 " (1095) 91 1 / 2 " (2324) 14.20 (1.32) 27.33 (2.54) 31.34 (2.91)
FWHID4080 1 12.65 (1.18) 18 5 / 16 " (465) 20" (508) 91 1 / 2 " (2324) 14.20 (1.32) 12.65 (1.18) 31.34 (2.91)
FWHID5080 1 AS/SA 16.46 (1.53) 24 5 / 16 " (618) 26" (660) 91 1 / 2 " (1984) 20.82 (1.93) 16.46 (1.53) 39.29 (3.65)
FWHID5080 2 AP/PA 34.93 (3.25) 24 5 / 16 " (618) 55 1 / 8 " (1400) 91 1 / 2 " (2324) 20.82 (1.93) 34.93 (3.24) 39.29 (3.65)
• Dimensions in parentheses are in millimeters or square meters. continued on next page
*For two-panel AP/PA doors with only one panel open, clear opening is based on the active panel open and the passive panel closed.
**Active left- and right-hinged patio doors also available. Contact your Andersen supplier for more information.
