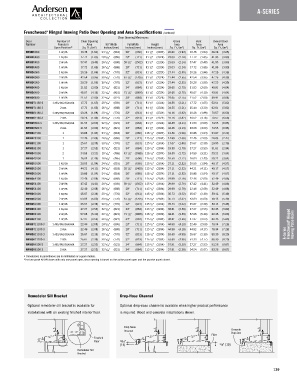

A-SERIES

®
Frenchwood Hinged Inswing Patio Door Opening and Area Specifications (continued)
Clear Opening Maximums
Door Number of Clear Opening Glass Vent Overall Door
Number Panels in Area 90 ° Width Full Width Height Area Area Area
Open Position* Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
FWHID5080 1 AP/PA 16.45 (1.53) 24 5 / 16 " (618) 26" (660) 91 1 / 2 " (2324) 20.82 (1.93) 16.45 (1.53) 39.29 (3.65)
FWHID5480 1 AS/SA 17.72 (1.65) 26 5 / 16 " (668) 28" (711) 91 1 / 2 " (2324) 23.03 (2.14) 17.72 (1.65) 41.95 (3.90)
FWHID5480 2 AP/PA 37.47 (3.48) 26 5 / 16 " (668) 59 1 / 8 " (1502) 91 1 / 2 " (2324) 23.03 (2.14) 37.47 (3.48) 41.95 (3.90)
FWHID5480 1 AP/PA 17.72 (1.65) 26 5 / 16 " (668) 28" (711) 91 1 / 2 " (2324) 23.03 (2.14) 17.72 (1.65) 41.95 (3.90)
FWHID6080 1 AS/SA 20.26 (1.88) 30 5 / 16 " (770) 32" (813) 91 1 / 2 " (2324) 27.44 (2.55) 20.26 (1.88) 47.25 (4.39)
FWHID6080 2 AP/PA 42.54 (3.95) 30 5 / 16 " (770) 67 1 / 8 " (1705) 91 1 / 2 " (2324) 27.44 (2.55) 42.54 (3.95) 47.25 (4.39)
FWHID6080 1 AP/PA 20.26 (1.88) 30 5 / 16 " (770) 32" (813) 91 1 / 2 " (2324) 27.44 (2.55) 20.26 (1.88) 47.25 (4.39)
FWHID6480 1 AS/SA 21.53 (2.00) 32 5 / 16 " (821) 34" (864) 91 1 / 2 " (2324) 29.65 (2.75) 21.53 (2.00) 49.91 (4.64)
FWHID6480 2 AP/PA 45.07 (4.19) 32 5 / 16 " (821) 71 1 / 8 " (1806) 91 1 / 2 " (2324) 29.65 (2.75) 45.07 (4.19) 49.91 (4.64)
FWHID6480 1 AP/PA 21.52 (2.00) 32 5 / 16 " (821) 34" (864) 91 1 / 2 " (2324) 29.65 (2.75) 21.52 (2.00) 49.91 (4.64)
FWHID71180-3 1 ASS/SAS/SSA/ASA 17.72 (1.65) 26 5 / 16 " (668) 28" (711) 91 1 / 2 " (2324) 34.55 (3.21) 17.72 (1.65) 62.61 (5.82)
FWHID71180-3 2 ASA 17.72 (1.65) 26 5 / 16 " (668) 28" (711) 91 1 / 2 " (2324) 34.55 (3.21) 35.44 (3.30) 62.61 (5.82)
FWHID81180-3 1 ASS/SAS/SSA/ASA 20.26 (1.88) 30 5 / 16 " (770) 32" (813) 91 1 / 2 " (2324) 41.16 (3.82) 20.26 (1.88) 70.57 (6.56)
FWHID81180-3 2 ASA 20.26 (1.88) 30 5 / 16 " (770) 32" (813) 91 1 / 2 " (2324) 41.16 (3.82) 40.52 (3.76) 70.57 (6.56)
FWHID9680-3 1 ASS/SAS/SSA/ASA 21.53 (2.00) 32 5 / 16 " (821) 34" (864) 91 1 / 2 " (2324) 44.46 (4.13) 21.53 (2.00) 74.55 (6.93)
FWHID9680-3 2 ASA 21.53 (2.00) 32 5 / 16 " (821) 34" (864) 91 1 / 2 " (2324) 44.46 (4.13) 43.06 (4.00) 74.55 (6.93)
FWHID27100 1 20.85 (1.94) 24 5 / 16 " (618) 26" (660) 115 1 / 2 " (2934) 13.56 (1.26) 20.85 (1.94) 24.97 (2.32)
FWHID29100 1 22.46 (2.09) 26 5 / 16 " (668) 28" (711) 115 1 / 2 " (2934) 14.99 (1.39) 22.46 (2.09) 26.63 (2.47)
FWHID31100 1 25.67 (2.39) 30 5 / 16 " (770) 32" (813) 115 1 / 2 " (2934) 17.87 (1.66) 25.67 (2.39) 29.95 (2.78)
FWHID33100 1 27.27 (2.53) 32 5 / 16 " (821) 34" (864) 115 1 / 2 " (2934) 19.30 (1.79) 27.27 (2.53) 31.61 (2.94)
FWHID40100 2 34.59 (3.21) 18 5 / 16 " (465) 43 1 / 8 " (1095) 115 1 / 2 " (2934) 18.50 (1.72) 34.59 (3.21) 39.21 (3.64)
FWHID40100 1 16.04 (1.49) 18 5 / 16 " (465) 20" (508) 115 1 / 2 " (2934) 18.50 (1.72) 16.04 (1.49) 39.21 (3.64)
FWHID50100 1 AS/SA 20.85 (1.94) 24 5 / 16 " (618) 26" (660) 115 1 / 2 " (2934) 27.11 (2.52) 20.85 (1.94) 49.17 (4.57)
FWHID50100 2 AP/PA 44.21 (4.11) 24 5 / 16 " (618) 55 1 / 8 " (1400) 115 1 / 2 " (2934) 27.11 (2.52) 44.21 (4.11) 49.17 (4.57)
FWHID50100 1 AP/PA 20.85 (1.94) 24 5 / 16 " (618) 26" (660) 115 1 / 2 " (2934) 27.11 (2.52) 20.85 (1.94) 49.17 (4.57)
FWHID54100 1 AS/SA 22.46 (2.09) 26 5 / 16 " (668) 28" (711) 115 1 / 2 " (2934) 29.99 (2.79) 22.46 (2.09) 52.49 (4.88)
FWHID54100 2 AP/PA 47.42 (4.41) 26 5 / 16 " (668) 59 1 / 8 " (1502) 115 1 / 2 " (2934) 29.99 (2.79) 47.42 (4.41) 52.49 (4.88)
FWHID54100 1 AP/PA 22.46 (2.09) 26 5 / 16 " (668) 28" (711) 115 1 / 2 " (2934) 29.99 (2.79) 22.46 (2.09) 52.49 (4.88)
FWHID60100 1 AS/SA 25.67 (2.39) 30 5 / 16 " (770) 32" (813) 115 1 / 2 " (2934) 35.73 (3.32) 25.67 (2.39) 59.13 (5.49)
FWHID60100 2 AP/PA 53.84 (5.00) 30 5 / 16 " (770) 67 1 / 8 " (1705) 115 1 / 2 " (2934) 35.73 (3.32) 53.84 (5.00) 59.13 (5.49)
FWHID60100 1 AP/PA 25.67 (2.39) 30 5 / 16 " (770) 32" (813) 115 1 / 2 " (2934) 35.73 (3.32) 25.67 (2.39) 59.13 (5.49)
FWHID64100 1 AS/SA 27.27 (2.53) 32 5 / 16 " (821) 34" (864) 115 1 / 2 " (2934) 38.61 (3.59) 27.27 (2.53) 62.45 (5.80)
FWHID64100 2 AP/PA 57.05 (5.30) 32 5 / 16 " (821) 71 1 / 8 " (1806) 115 1 / 2 " (2934) 38.61 (3.59) 57.05 (5.30) 62.45 (5.80)
FWHID64100 1 AP/PA 27.27 (2.53) 32 5 / 16 " (821) 34" (864) 115 1 / 2 " (2934) 38.61 (3.59) 27.27 (2.53) 62.45 (5.80)
FWHID711100-3 1 ASS/SAS/SSA/ASA 22.46 (2.09) 26 5 / 16 " (668) 28" (711) 115 1 / 2 " (2934) 44.98 (4.18) 22.46 (2.09) 78.34 (7.28) Frenchwood ® Hinged Inswing Patio Doors
FWHID711100-3 2 ASA 22.46 (2.09) 26 5 / 16 " (668) 28" (711) 115 1 / 2 " (2934) 44.98 (4.18) 44.92 (4.17) 78.34 (7.28)
FWHID811100-3 1 ASS/SAS/SSA/ASA 25.67 (2.39) 30 5 / 16 " (770) 32" (813) 115 1 / 2 " (2934) 53.60 (4.98) 25.67 (2.39) 88.30 (8.20) A-Series
FWHID811100-3 2 ASA 25.67 (2.39) 30 5 / 16 " (770) 32" (813) 115 1 / 2 " (2934) 53.60 (4.98) 51.33 (4.77) 88.30 (8.20)
FWHID96100-3 1 ASS/SAS/SSA/ASA 27.27 (2.53) 32 5 / 16 " (821) 34" (864) 115 1 / 2 " (2934) 57.91 (5.38) 27.27 (2.53) 93.28 (8.67)
FWHID96100-3 2 ASA 27.27 (2.53) 32 5 / 16 " (821) 34" (864) 115 1 / 2 " (2934) 57.91 (5.38) 54.54 (5.07) 93.28 (8.67)
• Dimensions in parentheses are in millimeters or square meters.
*For two-panel AP/PA doors with only one panel open, clear opening is based on the active panel open and the passive panel closed.
9 ⁄16"
(14)

Remodeler Sill Bracket Drop-Nose Channel
9 ⁄16"
Optional remodeler sill bracket is available for Optional drop-nose channel is av 3 ⁄4" (19)
(14) ailable when higher product performance
installations with an existing finished interior floor. is required. Wood and concrete installations shown.

Drop-Nose
Channel Concrete
Dap-Out
Filler
Finished
Floor 9 ⁄16"
3 ⁄4" (19)
(14)
Remodeler Sill
Bracket
139
